FM Stereo/FM-AM Tuner ST-J55L

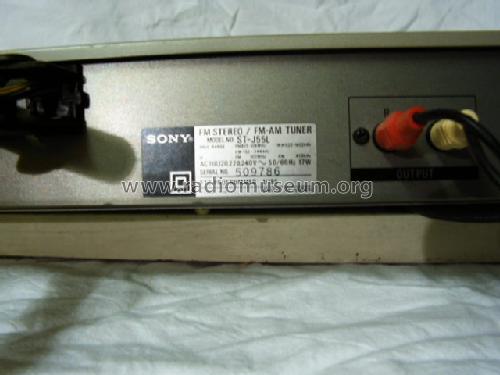

FM Stereo/FM-AM Tuner ST-J55L; Sony Corporation; (ID = 157750) Radio FM Stereo/FM-AM Tuner ST-J55L; Sony Corporation; (ID = 157751) Radio

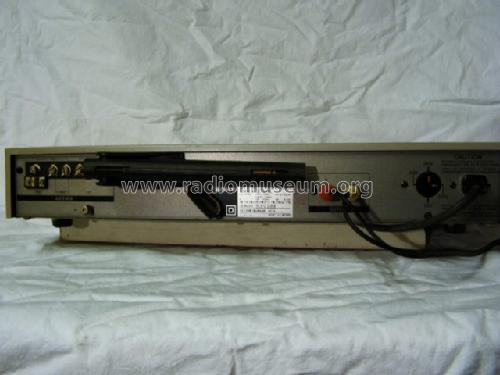

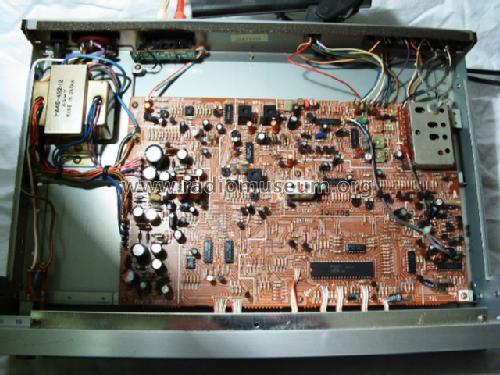

FM Stereo/FM-AM Tuner ST-J55L; Sony Corporation; (ID = 157752) Radio FM Stereo/FM-AM Tuner ST-J55L; Sony Corporation; (ID = 157836) Radio
Use red slider bar for more.

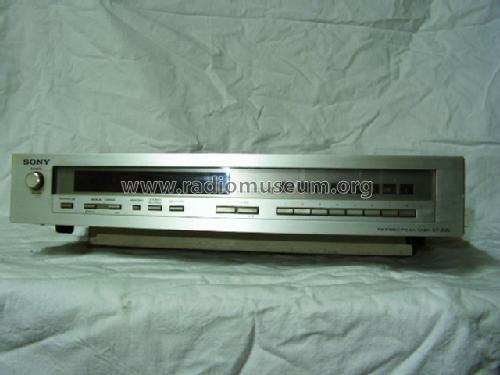

FM Stereo/FM-AM Tuner ST-J55L; Sony Corporation; (ID = 157750) Radio
Sony Corporation;: FM Stereo/FM-AM Tuner ST-J55L [Radio] ID = 157750 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM Stereo/FM-AM Tuner ST-J55L, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1980/1981 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop; ZF/IF 450 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FM Stereo/FM-AM Tuner ST-J55L - Sony Corporation; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 80 x 330 mm / 16.9 x 3.1 x 13 inch
Notes

Quarzgesteuertes digitales PPL-Synthesizersystem.

Der Tuner lässt sich kombinieren mit dem Sony-Verstärker TA-F55.

Net weight (2.2 lb = 1 kg) 4.6 kg / 10 lb 2.1 oz (10.132 lb)
Source of data -- Original-techn. papers.
Mentioned in Funkschau (22/1980, S. 56 / HiFi 80 in Düsseldorf)

Model page created by Fred Nerger. See "Data change" for further contributors.
