TR-714

TR-714; Sony Corporation; (ID = 105766) Radio

TR-714; Sony Corporation; (ID = 603716) Radio
TR-714; Sony Corporation; (ID = 2008963) Radio TR-714; Sony Corporation; (ID = 421823) Radio
TR-714; Sony Corporation; (ID = 421824) Radio TR-714; Sony Corporation; (ID = 113923) Radio
TR-714; Sony Corporation; (ID = 113921) Radio TR-714; Sony Corporation; (ID = 113922) Radio
TR-714; Sony Corporation; (ID = 113924) Radio TR-714; Sony Corporation; (ID = 262832) Radio
TR-714; Sony Corporation; (ID = 613607) Radio TR-714; Sony Corporation; (ID = 689097) Radio
Use red slider bar for more.
TR-714; Sony Corporation; (ID = 2008963) Radio
Sony Corporation;: TR-714 [Radio] ID = 2008963 1400x932

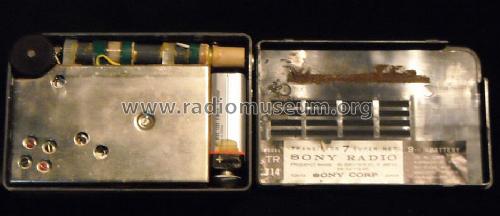

Select picture or schematic to display from thumbnails on the right and click for download.
For model TR-714, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2T201 2T76 2T76 2T66 2T65 2T65 2T65 1T23 or. OA70 1T23 or. 1N60 1T52
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage and/or dry batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: TR-714 - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 120 x 80 x 36 mm / 4.7 x 3.1 x 1.4 inch
Notes SW: 3.9 - 12 MHz.
Price in first year of sale 10'800.00 Yen
Collectors' prices
Source of data -- Schematic
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 541 Folder 15 8-1961)

Model page created by Robert Schmalstieg. See "Data change" for further contributors.
