Sparton 1000 Ch= 12L7

Sparton 1000 Ch= 12L7; Sparks-Withington Co (ID = 307353) Radio

Sparton 1000 Ch= 12L7; Sparks-Withington Co (ID = 307354) Radio

Sparton 1000 Ch= 12L7; Sparks-Withington Co (ID = 307355) Radio

Sparton 1000 Ch= 12L7; Sparks-Withington Co (ID = 307356) Radio

Sparton 1000 Ch= 12L7; Sparks-Withington Co (ID = 307357) Radio

Sparton 1000 Ch= 12L7; Sparks-Withington Co (ID = 307358) Radio

Sparton 1000 Ch= 12L7; Sparks-Withington Co (ID = 307359) Radio

Sparton 1000 Ch= 12L7; Sparks-Withington Co (ID = 307360) Radio

Sparton 1000 Ch= 12L7; Sparks-Withington Co (ID = 307361) Radio

Sparton 1000 Ch= 12L7; Sparks-Withington Co (ID = 550475) Radio
Use red slider bar for more.
Sparton 1000 Ch= 12L7; Sparks-Withington Co (ID = 307353) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Sparks-Withington Co., (Sparton); Jackson, Michigan
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: 6BA6 6BE6 7A7 7A7 6E5 7C7 6H6GT 7C6 7A4 7A4 6V6GT 6V6GT 5Y3GT
Main principle Superhet with RF-stage; ZF/IF 456/10700 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker 2 Loudspeakers / Ø 9.5 inch = 24.1 cm
Power out
from Radiomuseum.org Model: Sparton 1000 Ch= 12L7 - Sparks-Withington Co., Sparton
Material Wooden case
Shape Console with Push Buttons.
Notes The Sparks Model Sparton 1000 is an AC Operated 13 Tube Combination Phono-Radio, AM-FM Superheterodyne Receiver with Loop Antenna.
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

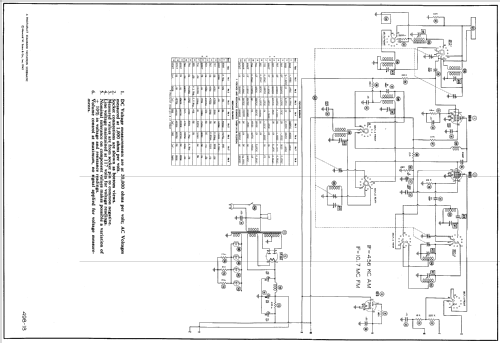

Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 5-49, Set 60, Folder 18)
