Sparton 616

Sparton 616 ; Sparks-Withington Co (ID = 675151) Radio
Sparton 616 ; Sparks-Withington Co (ID = 782186) Radio Sparton 616 ; Sparks-Withington Co (ID = 1488779) Radio
Sparton 616 ; Sparks-Withington Co (ID = 782188) Radio Sparton 616 ; Sparks-Withington Co (ID = 782187) Radio
Sparton 616 ; Sparks-Withington Co (ID = 267315) Radio Sparton 616 ; Sparks-Withington Co (ID = 267316) Radio
Sparton 616 ; Sparks-Withington Co (ID = 267318) Radio Sparton 616 ; Sparks-Withington Co (ID = 1357697) Radio
Sparton 616 ; Sparks-Withington Co (ID = 1357698) Radio Sparton 616 ; Sparks-Withington Co (ID = 1357703) Radio
Use red slider bar for more.
Sparton 616 ; Sparks-Withington Co (ID = 782186) Radio
Sparks-Withington Co: Sparton 616 [Radio] ID = 782186 486x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sparton 616, Sparks-Withington Co., (Sparton); Jackson, Michigan:
Ebay 380152602108

Country:  United States of America (USA)
Manufacturer / Brand:  Sparks-Withington Co., (Sparton); Jackson, Michigan
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 78 6A7 78 75 42 80
Main principle Superhet with RF-stage; ZF/IF 345 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Sparton 616 - Sparks-Withington Co., Sparton
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition (Rider's 6-9, 6-10, 7-16)
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (page 150.)
Literature/Schematics (2) Cathedral & Tombstone Radios (page 254.)

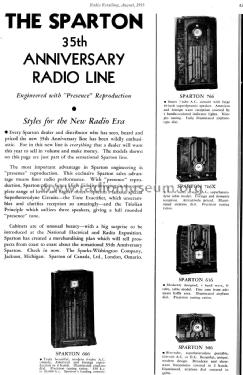

Literature/Schematics (3) Radio Retailing (Radio & Television R.) (July 1935 page 55. August 1935 page 63.)


All listed radios etc. from Sparks-Withington Co., (Sparton); Jackson, Michigan
Here you find 719 models, 345 with images and 646 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
