Sparton 5006X Ch= 25TK10A

Sparton 5006X Ch= 25TK10A; Sparks-Withington Co (ID = 2594033) Television Sparton 5006X Ch= 25TK10A; Sparks-Withington Co (ID = 2594034) Television
Sparton 5006X Ch= 25TK10A; Sparks-Withington Co (ID = 2594035) Television Sparton 5006X Ch= 25TK10A; Sparks-Withington Co (ID = 763199) Television
Use red slider bar for more.
Sparton 5006X Ch= 25TK10A; Sparks-Withington Co (ID = 2594033) Television
Sparks-Withington Co: Sparton 5006X Ch= 25TK10A [Television] ID = 2594033 1400x1050

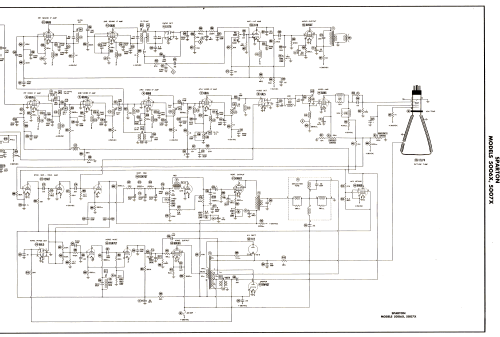

Select picture or schematic to display from thumbnails on the right and click for download.
For model Sparton 5006X Ch= 25TK10A, Sparks-Withington Co., (Sparton); Jackson, Michigan:
Picture from Scott Fosgate.

Country:  United States of America (USA)
Manufacturer / Brand:  Sparks-Withington Co., (Sparton); Jackson, Michigan
Year: 1951 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 25:
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 60Hz; 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Sparton 5006X Ch= 25TK10A - Sparks-Withington Co., Sparton
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

Sparton 5006X, Chassis 25TK10A; b/w round CRT TV with US FCC standard VHF turret tuner.

Mentioned in Photofact Folder, Howard W. SAMS (Set 121, Folder 13, 1-1951)

Model page created by a member from A. See "Data change" for further contributors.
