Aircastle 2-615

Aircastle 2-615 ; Spiegel Inc. (ID = 563614) Radio
Aircastle 2-615 ; Spiegel Inc. (ID = 563615) Radio
Use red slider bar for more.
Aircastle 2-615 ; Spiegel Inc. (ID = 563614) Radio

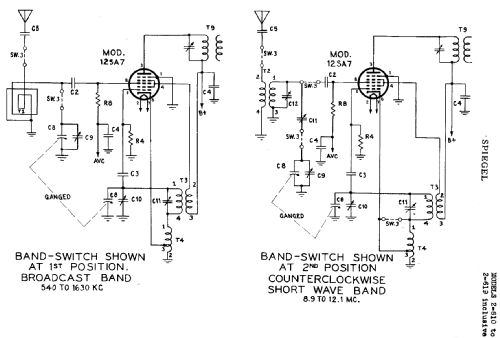

Select picture or schematic to display from thumbnails on the right and click for download.
Country:  United States of America (USA)
Manufacturer / Brand:  Spiegel Inc. (Continental); Chicago
Year: 1947 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SA7 12SK7 12SQ7 12J5GT 35L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Model: Aircastle 2-615 - Spiegel Inc. Continental;
Shape Tablemodel, with any shape - general.
Notes Self Contained Loop Antenna.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before

All listed radios etc. from Spiegel Inc. (Continental); Chicago
