Air Castle AP2000 Ch= 821

Spiegel Inc. (Continental); Chicago

  • Year
  • 1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 59633

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 456 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Air Castle AP2000 Ch= 821 - Spiegel Inc. Continental;
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 15.375 x 16 x 9.75 inch / 391 x 406 x 248 mm
  • Notes
  •

     Model  Differences
     AP2000  Base model
     AP2001  Base model with all-wave doublet aerial included

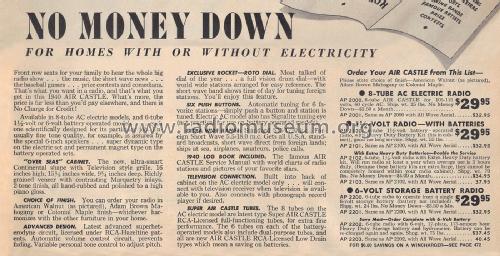

  • Price in first year of sale
  • 29.95 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 12 = ca. 1941 and before
  • Literature/Schematics (1)
  • Riders 12-12
