• Year
  • 1956 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 261890

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 50/60 cycles, 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

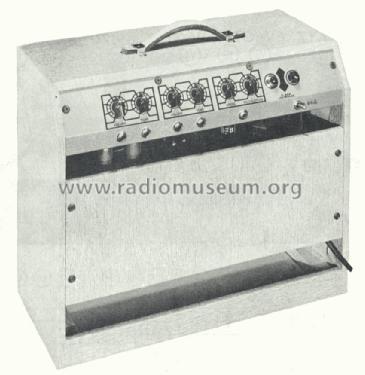

  • Model: R-600 - Spiegel Inc. Continental;
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • The Electrolab Model R-600 is an AC operated 4 channel audio amplifier equipped with a vibrato osc.

  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
