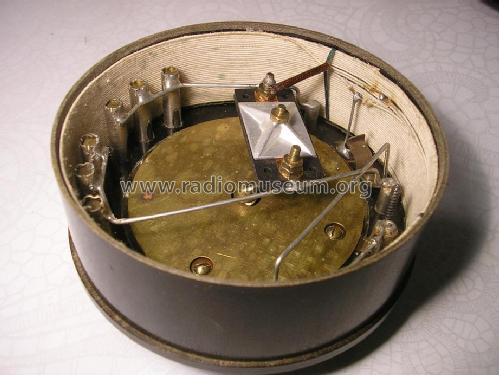

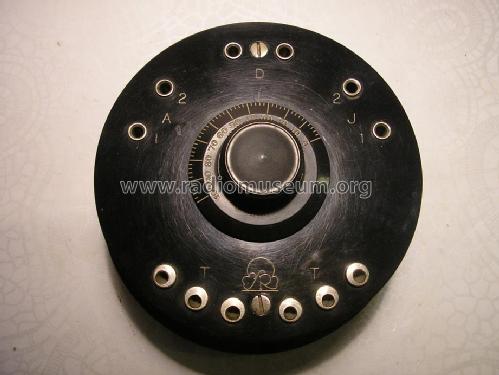

Kristall R
Use red slider bar for more.
SRA Svenska: Kristall R [Crystal] ID = 1368856 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Radiola | ||||
|---|---|---|---|---|---|
| Year: 1928 | Category: Detector-Radio (Crystal or diode, without tubes/transistors) |
| Main principle | Crystal or Solid State Detector |
|---|---|
| Wave bands | Wave Bands given in the notes. |
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | - For headphones or amp. |
| Power out | |
| from Radiomuseum.org | Model: Kristall R - SRA Svenska Radioaktiebolaget; |
| Material | Various materials |
| Shape | Tablemodel, with any shape - general. |
| Dimensions (WHD) | 133 x 75 x 133 mm / 5.2 x 3 x 5.2 inch |
| Notes | Wave band 150 - 400m |
Model page created by Timo Rantasaari. See "Data change" for further contributors.
