Radiola 332V

Radiola 332V; SRA Svenska (ID = 2118690) Radio

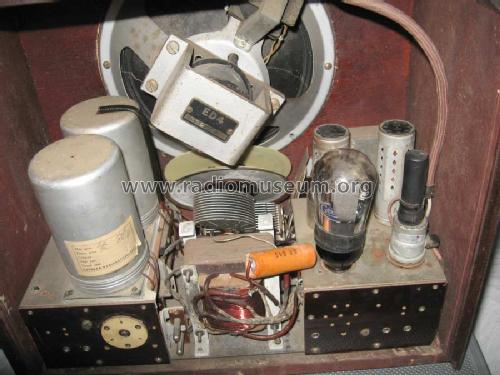

Radiola 332V; SRA Svenska (ID = 516670) Radio Radiola 332V; SRA Svenska (ID = 516673) Radio

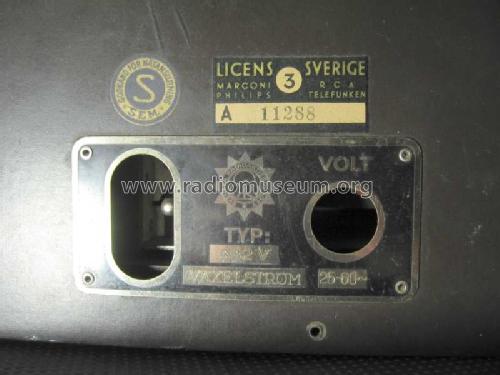

Radiola 332V; SRA Svenska (ID = 516671) Radio Radiola 332V; SRA Svenska (ID = 516672) Radio
Radiola 332V; SRA Svenska (ID = 1072550) Radio Radiola 332V; SRA Svenska (ID = 1072552) Radio
Radiola 332V; SRA Svenska (ID = 1072554) Radio
Use red slider bar for more.
Radiola 332V; SRA Svenska (ID = 516670) Radio
SRA Svenska: Radiola 332V [Radio] ID = 516670 707x616
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola 332V, SRA Svenska Radioaktiebolaget; Stockholm

Country:  Sweden
Manufacturer / Brand:  SRA Svenska Radioaktiebolaget; Stockholm
Brand

Radiola
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: MH4 MH4 MPT4 U10
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: Radiola 332V - SRA Svenska Radioaktiebolaget;
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 405 x 380 x 215 mm / 15.9 x 15 x 8.5 inch
Net weight (2.2 lb = 1 kg) 10.8 kg / 23 lb 12.6 oz (23.789 lb)
Source of data -- Schematic

Model page created by Lars-G. Lundelin. See "Data change" for further contributors.



All listed radios etc. from SRA Svenska Radioaktiebolaget; Stockholm
Here you find 267 models, 155 with images and 157 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
SRA Svenska: Radiola 332V
Threads: 1 | Posts: 4
Hits: 671     Replies: 3
sra: Radiola 332V and 342LV schematics
Sven Ubik
05.Jun.17
  1

Hello, does anybody have schematics for Radiola 332V and 342LV?

Thank you very much.

Sven Ubik

Lars-G. Lundelin
05.Jun.17
  2

Hello Sven

Please check your email.



Regards

Lars-G.

Bernhard Nagel
05.Jun.17
  3

Hello Lars,

please upload the schematic of the SRA 332V to the model page. This would be a valuable addition for other people who also need technical info about this radio receiver.

Thanks in advance,
Bernhard

Lars-G. Lundelin
05.Jun.17
  4

It's been uploaded.



regards

Lars-G.
