Brand
|
Radiola | ||||
---|---|---|---|---|---|
Year: 1936 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
Valves / Tubes | 3: VMP4G N41 U12 | ||||
schematic requested |
Main principle | TRF (Tuned-Radio-Frequency but use of regeneration unknown) |
---|---|
Tuned circuits | 1 AM circuit(s) |
Wave bands | Broadcast (MW) and Long Wave. |
Details | |
Power type and voltage | Alternating Current supply (AC) / 110; 120; 130; 140; 150; 160; 170; 200; 220; 240; 260 Volt |
Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
Power out | |
from Radiomuseum.org | Model: Radiola 362V - SRA Svenska Radioaktiebolaget; |
Material | Wooden case |

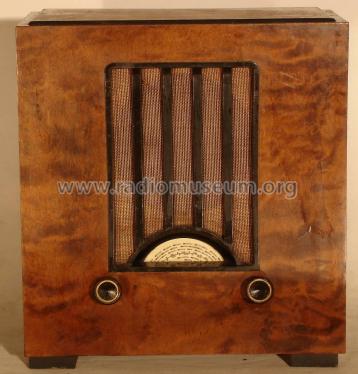

Shape | Tablemodel, high profile (upright - NOT Cathedral nor decorative). |
Dimensions (WHD) | 332 x 350 x 188 mm / 13.1 x 13.8 x 7.4 inch |
Notes | Ein Einkreiser mit ausgesprochen starker Endstufe. Elf einstellbare Netzspannungen! |
Net weight (2.2 lb = 1 kg) | 9 kg / 19 lb 13.2 oz (19.824 lb) |
Price in first year of sale | 150.00 SEK |
Source of data | - - Manufacturers Literature |
Model page created by Anders Söderström. See "Data change" for further contributors.
