For model Radiola 381 bat, SRA Svenska Radioaktiebolaget; Stockholm:
SRA Svenska Radioaktiebolaget Stockholm - Radiola 381 bat - 3

Country:  Sweden
Manufacturer / Brand:  SRA Svenska Radioaktiebolaget; Stockholm
Brand

Radiola
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: VS24 VS24 KT2
schematic requested
Main principle TRF with regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15 cm = 5.9 inch
Power out
from Radiomuseum.org Model: Radiola 381 bat - SRA Svenska Radioaktiebolaget;
Material Wooden case

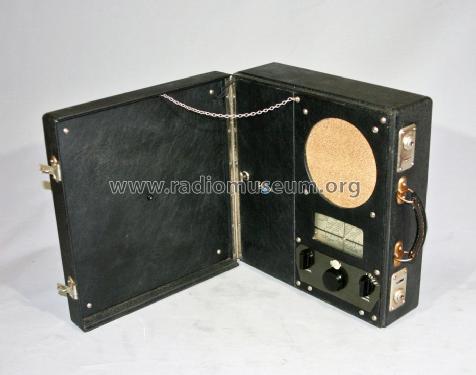

Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 350 x 380 x 130 mm / 13.8 x 15 x 5.1 inch
Notes Similar model "381" by Marconi Co., GB.
Price in first year of sale 185.00 sk

Model page created by Werner Maus. See "Data change" for further contributors.
