Radiola 391 BAT
Use red slider bar for more.

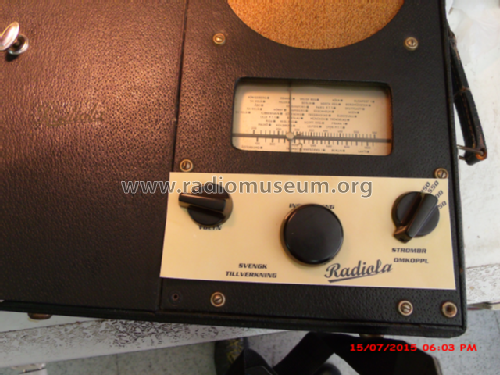

SRA Svenska: Radiola 391 BAT [Radio] ID = 1858537 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Radiola | ||||
|---|---|---|---|---|---|
| Year: 1939 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 3: VS24 VS24 KT2 |
| Main principle | TRF with regeneration |
|---|---|
| Tuned circuits | 2 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Storage and/or dry batteries / 2 & 70 & 108 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | 0.25 W (unknown quality) |
| from Radiomuseum.org | Model: Radiola 391 BAT - SRA Svenska Radioaktiebolaget; |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 385 x 355 x 145 mm / 15.2 x 14 x 5.7 inch |
| Net weight (2.2 lb = 1 kg) | 6 kg / 13 lb 3.5 oz (13.216 lb) |
| Price in first year of sale | 185.00 SEK |
| Source of data | - - Manufacturers Literature |
Model page created by Anders Söderström. See "Data change" for further contributors.
