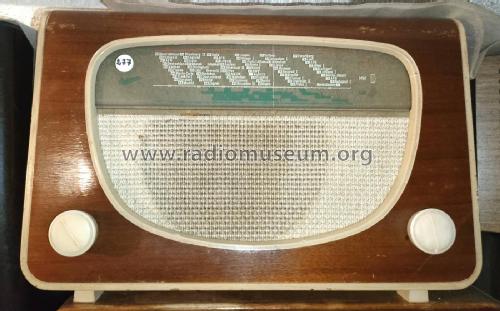

Radiola Polkett 1504V

Radiola Polkett 1504V; SRA Svenska (ID = 245283) Radio

Radiola Polkett 1504V; SRA Svenska (ID = 245284) Radio
Radiola Polkett 1504V; SRA Svenska (ID = 489277) Radio Radiola Polkett 1504V; SRA Svenska (ID = 489279) Radio
Radiola Polkett 1504V; SRA Svenska (ID = 489278) Radio Radiola Polkett 1504V; SRA Svenska (ID = 245282) Radio
Radiola Polkett 1504V; SRA Svenska (ID = 489281) Radio
Use red slider bar for more.
Radiola Polkett 1504V; SRA Svenska (ID = 489277) Radio
SRA Svenska: Radiola Polkett 1504V [Radio] ID = 489277 640x533
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola Polkett 1504V, SRA Svenska Radioaktiebolaget; Stockholm

Country:  Sweden
Manufacturer / Brand:  SRA Svenska Radioaktiebolaget; Stockholm
Brand

Radiola
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: MECH42 6BA6 6AV6 6AQ5 6X4
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-127; 150; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Radiola Polkett 1504V - SRA Svenska Radioaktiebolaget;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 404 x 264 x 181 mm / 15.9 x 10.4 x 7.1 inch
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Peter Olausson. See "Data change" for further contributors.
