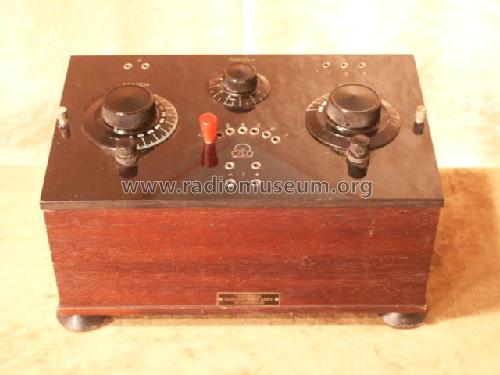

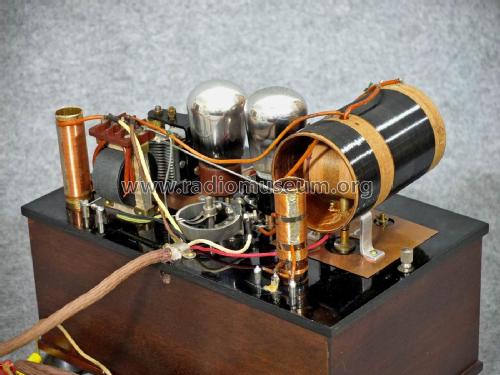

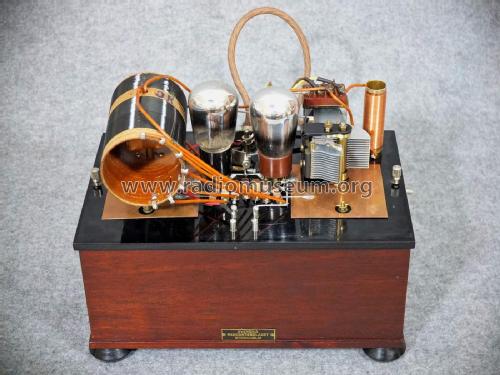

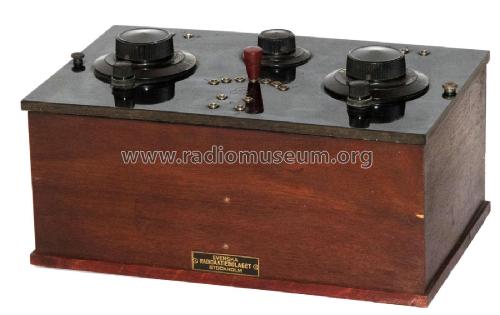

Radiola SR M62

Radiola SR M62; SRA Svenska (ID = 2629471) Radio Radiola SR M62; SRA Svenska (ID = 2629494) Radio
Radiola SR M62; SRA Svenska (ID = 2629483) Radio Radiola SR M62; SRA Svenska (ID = 2629502) Radio
Radiola SR M62; SRA Svenska (ID = 2629505) Radio Radiola SR M62; SRA Svenska (ID = 2629512) Radio
Radiola SR M62; SRA Svenska (ID = 1589441) Radio Radiola SR M62; SRA Svenska (ID = 105014) Radio
Radiola SR M62; SRA Svenska (ID = 105015) Radio Radiola SR M62; SRA Svenska (ID = 105013) Radio
Use red slider bar for more.
Radiola SR M62; SRA Svenska (ID = 2629471) Radio
SRA Svenska: Radiola SR M62 [Radio] ID = 2629471 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola SR M62, SRA Svenska Radioaktiebolaget; Stockholm:
SW; SRA Svenska Radioaktiebolaget; Stockholm; Radiola SR M62 - 1

Country:  Sweden
Manufacturer / Brand:  SRA Svenska Radioaktiebolaget; Stockholm
Brand

Radiola
Year: 1928–1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: A415 B409
Main principle TRF with regeneration; 1 AF stage(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 4/72 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Radiola SR M62 - SRA Svenska Radioaktiebolaget;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 305 x 152 x 178 mm / 12 x 6 x 7 inch
Notes gleiches Schema wie M60, nur andere Optik.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Source of data -- Collector info (Sammler)
Literature/Schematics (1) -- Original prospect or advert

Model page created by Peter Wölfel. See "Data change" for further contributors.



All listed radios etc. from SRA Svenska Radioaktiebolaget; Stockholm
Here you find 269 models, 159 with images and 158 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
SRA Svenska: Radiola SR M62
Threads: 1 | Posts: 1
Hits: 1676     Replies: 0
sra: M62; Radiola SR
Horst Schneider
06.Apr.12
  1

Liebe Radiofreunde,

in dem von mir erworbenen Gerät sind eine Valvo H 406 als Hf-Verstärker, und eine P 415 von Gecovalve als Endröhre eingestzt.

Viele Grüße

Horst Schneider
