• Country
• Italy

• Manufacturer / Brand
• SRE - Scuola Radio Elettra, Torino

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106282

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• BF324 BF324 TDA1220 TBA810 1N4002

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220/4x1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

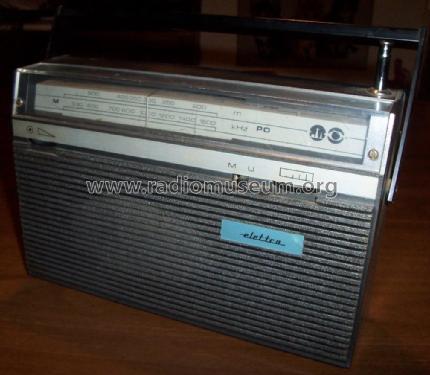

• Model: Ricevitore ad integrati 482 - SRE - Scuola Radio Elettra,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 180 x 90 mm / 10.6 x 7.1 x 3.5 inch

• Notes
• radioricevitore ad OM (530-1600 KHz) e FM (88-108 MHz), ad integrati + 2 transistor + a diodi al silicio. Integrati tipo: TDA1220A, TBA810, diodi tipo 1N4003.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
