SR-T116 (Japan 703)

Standard Radio Corp. (SR), Tokyo

  • Year
  • 1968 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 132581

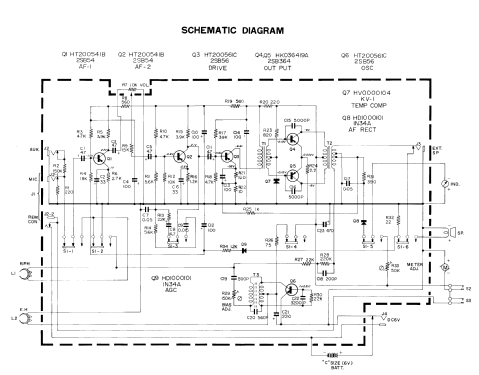

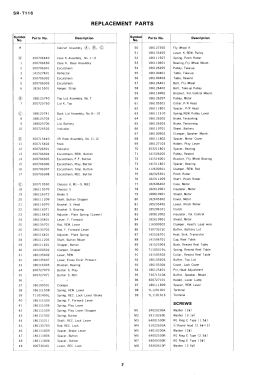

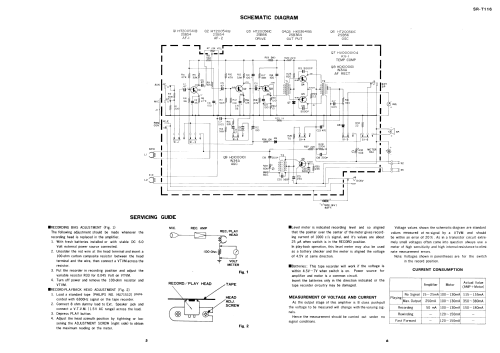

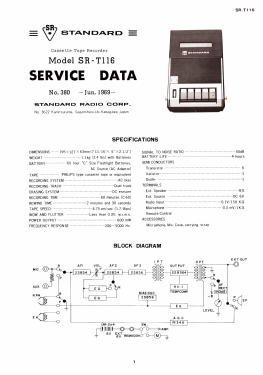

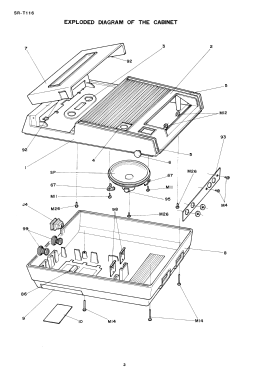

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage and/or dry batteries / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: SR-T116 - Standard Radio Corp. SR, Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 140 x 70 x 200 mm / 5.5 x 2.8 x 7.9 inch
  • Notes
  • SR STANDARD Solid State Cassette Tape Recorder - Tape speed 4,8 cm/sec - Power source - 4 UM-2 (C size) batteries - DC 6 Volt Input

    Made in Japan 703

  • Net weight (2.2 lb = 1 kg)
  • 1.4 kg / 3 lb 1.3 oz (3.084 lb)
  • Author
  • Model page created by J. Virgilio Santos. See "Data change" for further contributors.
