- Country
- Japan
- Manufacturer / Brand
- Standard Radio Corp. (SR), Tokyo
- Year
- 1994
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 139389
FA 2/95

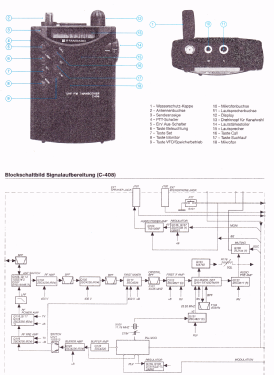

Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Superhet, double/triple conversion; ZF/IF 21800/450 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Storage and/or dry batteries / 2 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: C-108S - Standard Radio Corp. SR, Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 58 x 80 x 25 mm / 2.3 x 3.1 x 1 inch
- Notes
- STANDARD VHF-FM-Handfunkgerät C-108S.
Frequenzbereich: 144···146 MHz (erweiterbar); Pout 230 mW; 20 Speicherkanäle, 1750-Hz-Rufton.
- Net weight (2.2 lb = 1 kg)
- 0.1 kg / 0 lb 3.5 oz (0.22 lb)
- Price in first year of sale
- 349.00 DM
- Mentioned in
- FA 2/95
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
