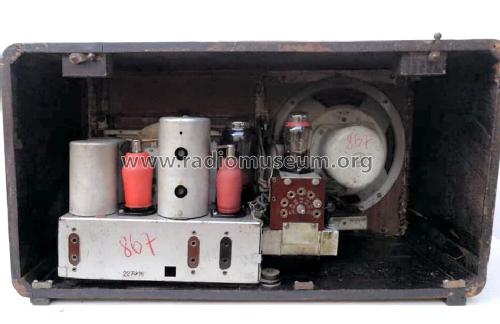

Elit szuper 4233

Elit szuper 4233; Standard; Budapest (ID = 262336) Radio
Elit szuper 4233; Standard; Budapest (ID = 475015) Radio Elit szuper 4233; Standard; Budapest (ID = 2284113) Radio
Elit szuper 4233; Standard; Budapest (ID = 312004) Radio Elit szuper 4233; Standard; Budapest (ID = 312005) Radio
Elit szuper 4233; Standard; Budapest (ID = 313990) Radio Elit szuper 4233; Standard; Budapest (ID = 1518445) Radio
Elit szuper 4233; Standard; Budapest (ID = 1518446) Radio Elit szuper 4233; Standard; Budapest (ID = 2284114) Radio
Elit szuper 4233; Standard; Budapest (ID = 2284115) Radio Elit szuper 4233; Standard; Budapest (ID = 2284116) Radio
Use red slider bar for more.
Elit szuper 4233; Standard; Budapest (ID = 475015) Radio
Standard; Budapest: Elit szuper 4233 [Radio] ID = 475015 850x516
Select picture or schematic to display from thumbnails on the right and click for download.
For model Elit szuper 4233, Standard; Budapest:
A magyar rádiózás története.., 1997.

Country:  Hungary
Manufacturer / Brand:  Standard; Budapest
Year: 1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 EBF2 ECL11 EZ3
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Elit szuper 4233 - Standard; Budapest
Material Wooden case
Shape Tablemodel, with any shape - general.
Price in first year of sale 278.00 pengö
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.



All listed radios etc. from Standard; Budapest
Here you find 155 models, 146 with images and 87 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
