• Country
• Hungary

• Manufacturer / Brand
• Standard; Budapest

• Year
• 1941–1943

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 150576

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH4 ECH3 EBF2 ECL11 EM4 EZ3

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

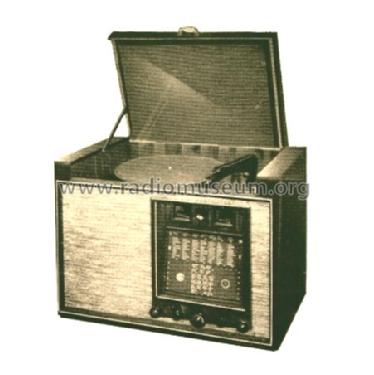

• Model: Koncertszuper 4355 - Standard; Budapest

• Shape
• Tablemodel, with any shape - general.

• Price in first year of sale
• 714.00 Pengö

• Source of data
• Rádiókészülékek Kapcsolásai 1936-56

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.

• Other Models

• Here you find 156 models, 147 with images and 88 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
