Prima U 2020

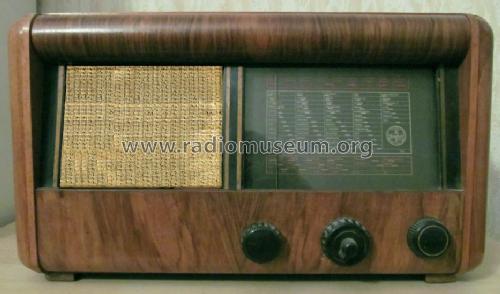

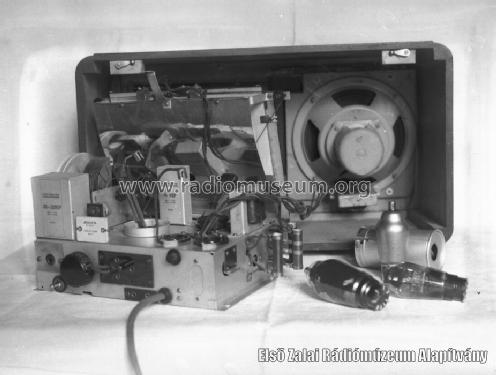

Prima U 2020; Standard; Budapest (ID = 262320) Radio
Prima U 2020; Standard; Budapest (ID = 395039) Radio Prima U 2020; Standard; Budapest (ID = 742618) Radio
Prima U 2020; Standard; Budapest (ID = 742619) Radio Prima U 2020; Standard; Budapest (ID = 780111) Radio
Prima U 2020; Standard; Budapest (ID = 780112) Radio Prima U 2020; Standard; Budapest (ID = 1442056) Radio
Prima U 2020; Standard; Budapest (ID = 1442057) Radio Prima U 2020; Standard; Budapest (ID = 1442059) Radio
Use red slider bar for more.
Prima U 2020; Standard; Budapest (ID = 395039) Radio
Standard; Budapest: Prima U 2020 [Radio] ID = 395039 600x351
Select picture or schematic to display from thumbnails on the right and click for download.
For model Prima U 2020, Standard; Budapest:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Standard; Budapest
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: CF7 CL4 CY2
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110, 150, 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Prima U 2020 - Standard; Budapest
Material Various materials
Shape Tablemodel, low profile (big size).
Price in first year of sale 213.00 pengö
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.
