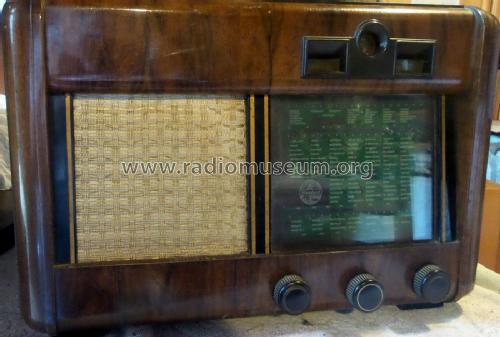

Szuper 40 U 2040

Standard; Budapest

  • Year
  • 1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 98136

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 127 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 110, 150, 220 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Szuper 40 U 2040 - Standard; Budapest
  • Shape
  • Tablemodel, with any shape - general.
  • Price in first year of sale
  • 408.00 pengö
  • Author
  • Model page created by Folkert Rothe. See "Data change" for further contributors.
