Boston GR-10T

Boston GR-10T; Standard Electric SE (ID = 2073309) Radio Boston GR-10T; Standard Electric SE (ID = 2073310) Radio
Boston GR-10T; Standard Electric SE (ID = 2073311) Radio Boston GR-10T; Standard Electric SE (ID = 2073312) Radio
Boston GR-10T; Standard Electric SE (ID = 2073313) Radio Boston GR-10T; Standard Electric SE (ID = 2073314) Radio
Use red slider bar for more.
Boston GR-10T; Standard Electric SE (ID = 2073309) Radio
Standard Electric SE: Boston GR-10T [Radio] ID = 2073309 1400x921
Select picture or schematic to display from thumbnails on the right and click for download.
For model Boston GR-10T, Standard Electric (SE); Santiago de Chile:

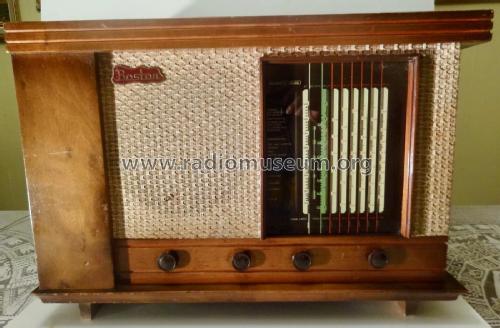

Frente

Country:  Chile
Manufacturer / Brand:  Standard Electric (SE); Santiago de Chile
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6BA6 6AT6 6AG6 6X5GT
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 inch = 19.1 cm
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Boston GR-10T - Standard Electric SE; Santiago
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 568 x 390 x 260 mm / 22.4 x 15.4 x 10.2 inch
Notes

This model is probably based on the Kolster Brandes model KB GR10T

Noticable differences are the writing and numbers (kHz instead of metres) on the dial and minor changes to component positions and sockets on the back of the chassis.

Model page created by Maximiliano Herrada. See "Data change" for further contributors.
