FM-AM 3 Band 10 Transistor SR-J800F

FM-AM 3 Band 10 Transistor SR-J800F; Standard Radio Corp. (ID = 2277931) Radio FM-AM 3 Band 10 Transistor SR-J800F; Standard Radio Corp. (ID = 2277932) Radio

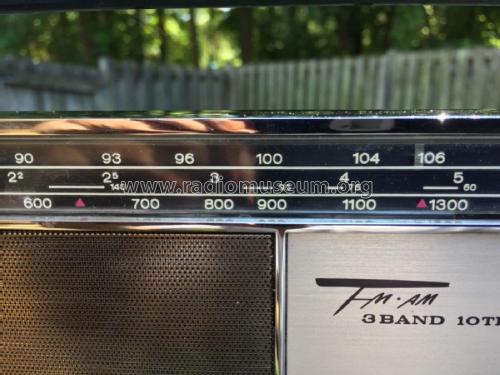

FM-AM 3 Band 10 Transistor SR-J800F; Standard Radio Corp. (ID = 2277930) Radio FM-AM 3 Band 10 Transistor SR-J800F; Standard Radio Corp. (ID = 2277928) Radio
FM-AM 3 Band 10 Transistor SR-J800F; Standard Radio Corp. (ID = 2277929) Radio FM-AM 3 Band 10 Transistor SR-J800F; Standard Radio Corp. (ID = 2277933) Radio
Use red slider bar for more.
FM-AM 3 Band 10 Transistor SR-J800F; Standard Radio Corp. (ID = 2277931) Radio
Standard Radio Corp.: FM-AM 3 Band 10 Transistor SR-J800F [Radio] ID = 2277931 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-AM 3 Band 10 Transistor SR-J800F, Standard Radio Corp. (SR), Tokyo:
ebay.com 273355667540 seller robertmrastus

Country:  Japan
Manufacturer / Brand:  Standard Radio Corp. (SR), Tokyo
Year: 1963 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
schematic requested
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / C: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FM-AM 3 Band 10 Transistor SR-J800F - Standard Radio Corp. SR, Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes

CD marks

Model page created by Aldo Andreani. See "Data change" for further contributors.



All listed radios etc. from Standard Radio Corp. (SR), Tokyo
Here you find 240 models, 222 with images and 65 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
