FM/AM 9 Transistor SR-Q771FL

Standard Radio Corp. (SR), Tokyo

  • Year
  • 1967 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 172043

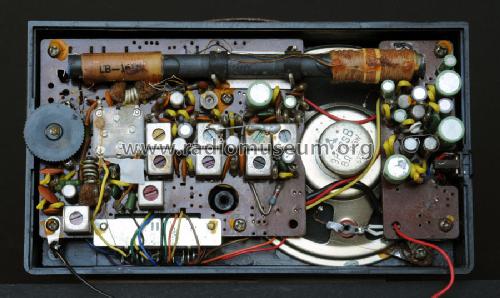

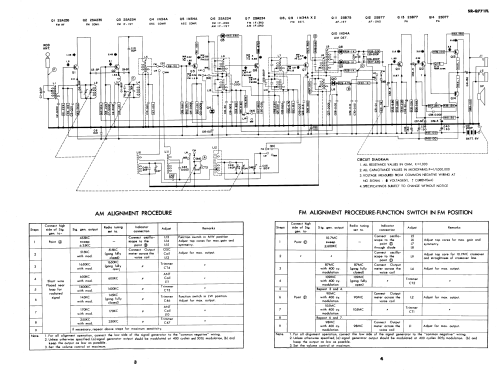

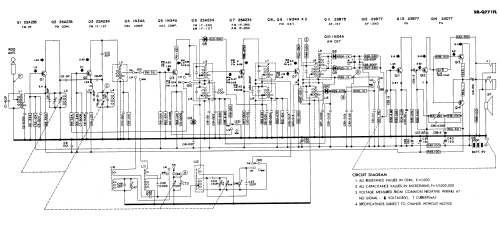

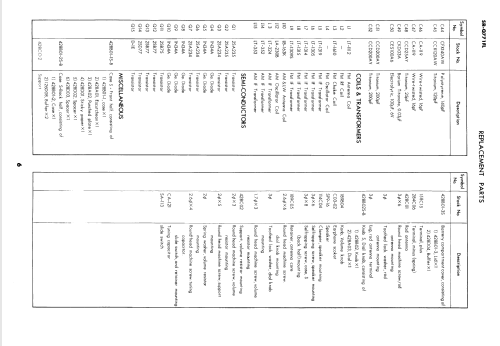

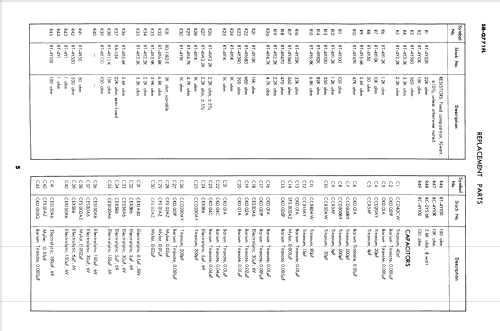

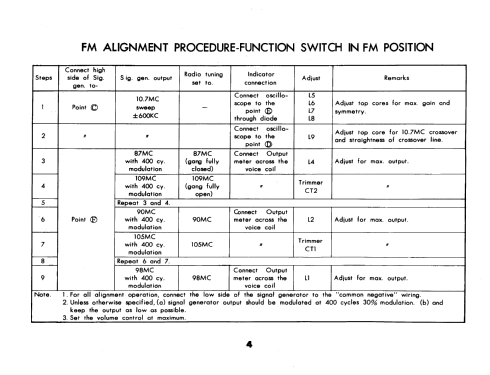

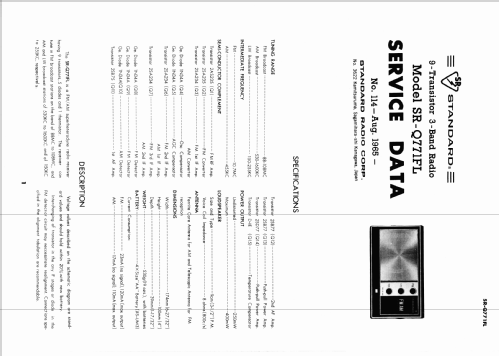

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 5 AM circuit(s)     7 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage

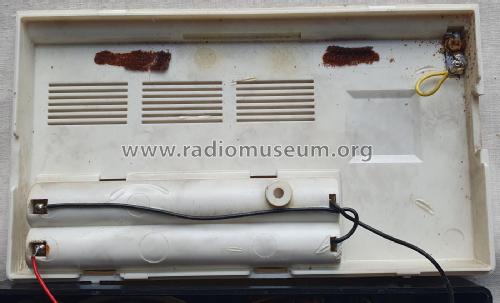

  • Dry Batteries / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.3 cm = 3.7 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM/AM 9 Transistor SR-Q771FL - Standard Radio Corp. SR, Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 174 x 100 x 40 mm / 6.9 x 3.9 x 1.6 inch
  • Notes
  • Three separate indications for FM, LW, MW.
  • Net weight (2.2 lb = 1 kg)
  • 0.650 kg / 1 lb 6.9 oz (1.432 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Stephan Manthei. See "Data change" for further contributors.
