Micronic Ruby SR-G433

Micronic Ruby SR-G433; Standard Radio Corp. (ID = 2383315) Radio Micronic Ruby SR-G433; Standard Radio Corp. (ID = 2383317) Radio
Micronic Ruby SR-G433; Standard Radio Corp. (ID = 2383314) Radio Micronic Ruby SR-G433; Standard Radio Corp. (ID = 2383316) Radio
Micronic Ruby SR-G433; Standard Radio Corp. (ID = 673307) Radio Micronic Ruby SR-G433; Standard Radio Corp. (ID = 673311) Radio
Micronic Ruby SR-G433; Standard Radio Corp. (ID = 673309) Radio Micronic Ruby SR-G433; Standard Radio Corp. (ID = 488793) Radio
Micronic Ruby SR-G433; Standard Radio Corp. (ID = 488795) Radio Micronic Ruby SR-G433; Standard Radio Corp. (ID = 673310) Radio
Use red slider bar for more.
Micronic Ruby SR-G433; Standard Radio Corp. (ID = 2383315) Radio
Standard Radio Corp.: Micronic Ruby SR-G433 [Radio] ID = 2383315 909x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Micronic Ruby SR-G433, Standard Radio Corp. (SR), Tokyo

Country:  Japan
Manufacturer / Brand:  Standard Radio Corp. (SR), Tokyo
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 2 x ? Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Micronic Ruby SR-G433 - Standard Radio Corp. SR, Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 1.83 x 1.83 x 0.83 inch / 46 x 46 x 21 mm
Notes Standard 7 Transistor Micronic Ruby SR-G433; two earphone jacks, mercury cells. Tatsächliches Gewicht nur 70 Gramm .Mercury Cells or Eveready E-640 x 2 or Mallory RM-640 x 2.
Net weight (2.2 lb = 1 kg) 0.1 kg / 0 lb 3.5 oz (0.22 lb)
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Standard Radio Corp. (SR), Tokyo
Here you find 239 models, 223 with images and 84 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Standard Radio Corp.: Micronic Ruby SR-G433
Threads: 1 | Posts: 1
Hits: 2205     Replies: 0
standard: SR-G433 (SRG433); Micronic Ruby
Hamish Galloway
24.Aug.08
  1

I accidentally added 2 incorrect photos to the SR-G433 model Ruby.  They should be obvious to collectors familiar with the radio, but that's not everyone :-).

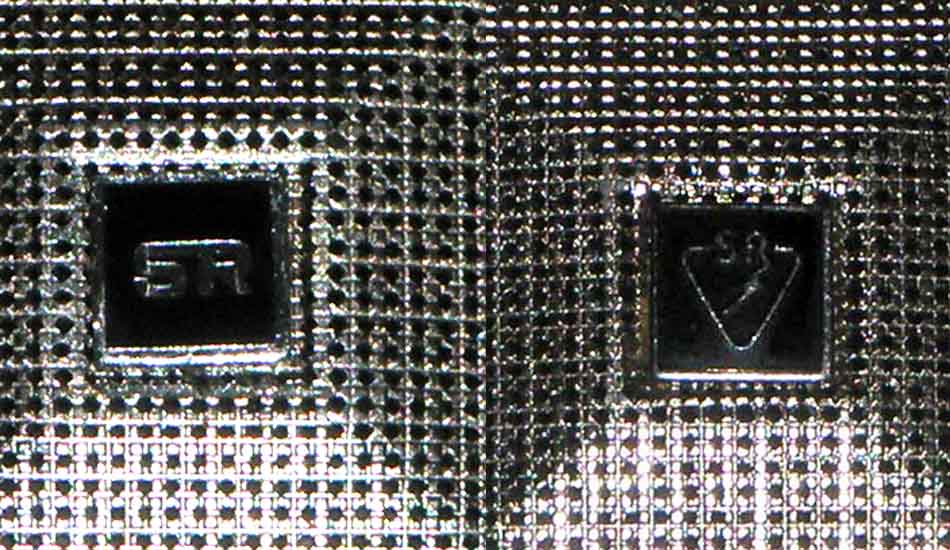

The incorrect photos are of the grill on a couple of SR-G430s and of course should have been uploaded to that model.  They were posted to show that 2 different logos appeared on the grill of identical sets (other than the case color).

I have requested of the administrators that they be changed and re-submitted the 2 which should be added th the SR-G430 page - hopefully they can understand me.

Hamish Galloway.

Attachments


Standard Radio Corp.: Micronic Ruby SR-G433
