Micronic Ruby SR-K466F

Micronic Ruby SR-K466F; Standard Radio Corp. (ID = 2391612) Radio

Micronic Ruby SR-K466F; Standard Radio Corp. (ID = 2391631) Radio

Micronic Ruby SR-K466F; Standard Radio Corp. (ID = 2392033) Radio
Micronic Ruby SR-K466F; Standard Radio Corp. (ID = 1725619) Radio Micronic Ruby SR-K466F; Standard Radio Corp. (ID = 1725620) Radio
Micronic Ruby SR-K466F; Standard Radio Corp. (ID = 1725623) Radio Micronic Ruby SR-K466F; Standard Radio Corp. (ID = 1725626) Radio
Micronic Ruby SR-K466F; Standard Radio Corp. (ID = 1725629) Radio Micronic Ruby SR-K466F; Standard Radio Corp. (ID = 1725632) Radio
Use red slider bar for more.
Micronic Ruby SR-K466F; Standard Radio Corp. (ID = 1725619) Radio
Standard Radio Corp.: Micronic Ruby SR-K466F [Radio] ID = 1725619 482x620
Select picture or schematic to display from thumbnails on the right and click for download.
For model Micronic Ruby SR-K466F, Standard Radio Corp. (SR), Tokyo

Country:  Japan
Manufacturer / Brand:  Standard Radio Corp. (SR), Tokyo
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 3 x 1.35 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.05 W (unknown quality)
from Radiomuseum.org Model: Micronic Ruby SR-K466F - Standard Radio Corp. SR, Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 65 x 80 x 34 mm / 2.6 x 3.1 x 1.3 inch
Notes

Umschalter AM-FM mit AFC, Teleskopantenne, seitlicher Drucktaster für Skalenbeleuchtung; mit Ledertasche. 3 Mercury Batterien 1,35 V.

Wellenbereiche:

  • FM: 88 - 108 MHz
  • AM: 640 - 1600 KHz



Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Collectors' prices

Model page created by Gerhard Härtl. See "Data change" for further contributors.



All listed radios etc. from Standard Radio Corp. (SR), Tokyo
Here you find 242 models, 225 with images and 65 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Standard Radio Corp.: Micronic Ruby SR-K466F
Threads: 1 | Posts: 5
Hits: 275     Replies: 4
standard: WTB: I am looking for parts for this SR-K466F radio
Jose Mesquita
21.May.19
  1

Hello,

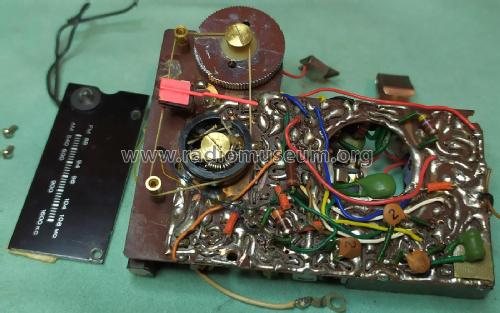

I managed to repair the brokem PCB traces and this radio works on AM and FM with great sensivity.

However, the volume potentiomer and the volume knob are both missing.

I need these parts to complete this radio. Is anyone willing to sell me those parts in case you have extra components that you can part with?

Thank you.



Attachments

Wolfgang Bauer
22.May.19
  2

Hello Jose.
If the dimensions fit, I have something for you.
Best regards WB.

Jose Mesquita
22.May.19
  3

Hallo Wolfgang,

Thank you for your reply and offer. Unfortunately it does not fit in becuase it is too big.

The maximum diameter for the pot is 10mm, and the switch mounting legs are 13mm apart.

I believe this pot is identical to one used in the models SR-K71F or SR-K72F, as these share the same chassis and schematics.

Here is a picture taken from this museum for the SR-K71F:





Attachments

Wolfgang Bauer
23.May.19
  4

Hello Jose,

This is the smallest potentiometer in my treasures. 3,9 kΩ

Regards WB.

Jose Mesquita
23.May.19
  5

Thak you, Wolfgang,

Meanwhile I found a supplier of 12mm units in eBay and have ordered them yesterday.

They are similar to your unit, i think, but I ordered the 10K value.

I will try to fit that 12mm unit in the 10mm space, we will see.

Otherwise I will just remove one potentiometer from one of my other lower cost Micronic Ruby units.

Best Regards,

Jose
