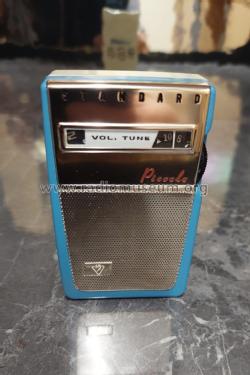

Piccolo SR-F300A; Standard Radio Corp. (ID = 1717085) Radio
Standard Radio Corp.: Piccolo SR-F300A [Radio] ID = 1717085 443x650
Select picture or schematic to display from thumbnails on the right and click for download.
For model Piccolo SR-F300A, Standard Radio Corp. (SR), Tokyo

Country:  Japan
Manufacturer / Brand:  Standard Radio Corp. (SR), Tokyo
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Piccolo SR-F300A - Standard Radio Corp. SR, Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 56 x 88 x 25 mm / 2.2 x 3.5 x 1 inch
Net weight (2.2 lb = 1 kg) 0.170 kg / 0 lb 6 oz (0.374 lb)
Price in first year of sale 1'295.00 F
Source of data Transistor Radios 1954-68

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
