• Country
• Japan

• Manufacturer / Brand
• Standard Radio Corp. (SR), Tokyo

• Year
• 1953 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 246752

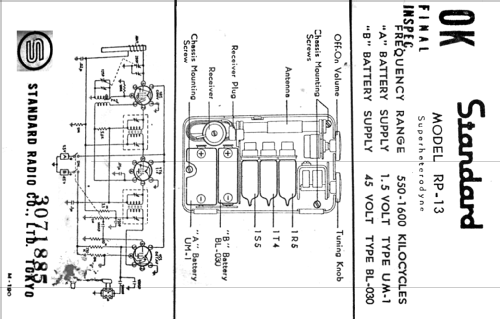

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 1R5 1T4 1S5

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1,5 & 45 Volt

• Loudspeaker
• - only for Earphone!

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Pocket Super RP-13 - Standard Radio Corp. SR, Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 100 x 160 x 45 mm / 3.9 x 6.3 x 1.8 inch

• Notes

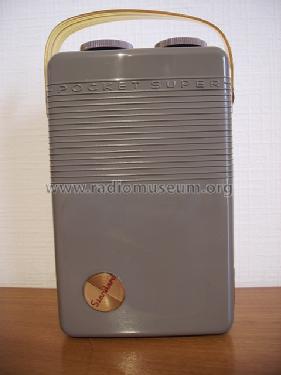

• The Standard Radio Personal Pocket Radio - Pocket Super RP-13 is a battery powered
  three tube superheterodyne receiver for earphone reception. Built-in ferrite rod antenna.

  Early models are marked with Nippon Kogata Musen Lab. Tokyo.
  Late models show the manufacturer Standard Radio Co., Ltd, Tokyo.

• Net weight (2.2 lb = 1 kg)
• 0.560 kg / 1 lb 3.7 oz (1.233 lb)

• Author
• Model page created by Christophe Thevenin. See "Data change" for further contributors.
