SR-250

SR-250; Standard Radio Corp. (ID = 809531) R-Player

SR-250; Standard Radio Corp. (ID = 809532) R-Player

SR-250; Standard Radio Corp. (ID = 809533) R-Player
SR-250; Standard Radio Corp. (ID = 2176647) R-Player SR-250; Standard Radio Corp. (ID = 1788802) R-Player
SR-250; Standard Radio Corp. (ID = 1237371) R-Player SR-250; Standard Radio Corp. (ID = 467804) R-Player
SR-250; Standard Radio Corp. (ID = 1237374) R-Player SR-250; Standard Radio Corp. (ID = 1260551) R-Player
SR-250; Standard Radio Corp. (ID = 1260552) R-Player SR-250; Standard Radio Corp. (ID = 1788803) R-Player
SR-250; Standard Radio Corp. (ID = 1788805) R-Player SR-250; Standard Radio Corp. (ID = 1788808) R-Player
Use red slider bar for more.
SR-250; Standard Radio Corp. (ID = 2176647) R-Player
Standard Radio Corp.: SR-250 [R-Player] ID = 2176647 1400x1279
Select picture or schematic to display from thumbnails on the right and click for download.

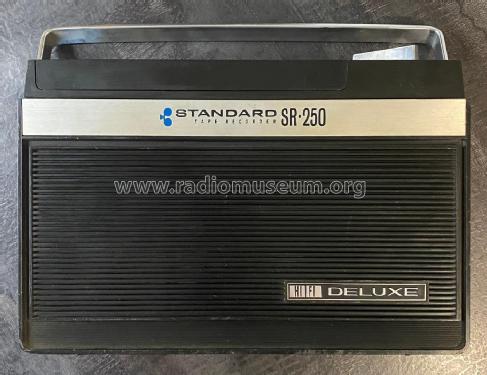

For model SR-250, Standard Radio Corp. (SR), Tokyo:
from my collection

Country:  Japan
Manufacturer / Brand:  Standard Radio Corp. (SR), Tokyo
Year: 1968 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 9:
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Line / Batteries (any type) / 230 / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: SR-250 - Standard Radio Corp. SR, Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 235 x 140 x 80 mm / 9.3 x 5.5 x 3.1 inch
Notes Bandes de 60 mm de diamètre - vitesse 4,75 et 9,5 cm/sec. 2 speed, 2 track.
Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Source of data - - Data from my own collection

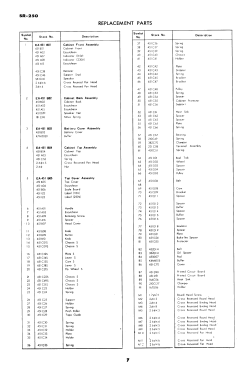

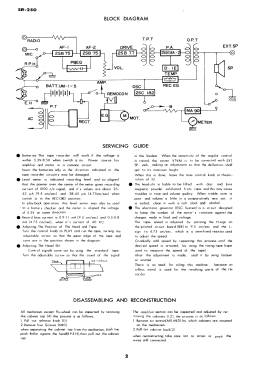

Literature/Schematics (1) Radio And Television Servicing books (R&TVS)

Model page created by Roger Bertin. See "Data change" for further contributors.



All listed radios etc. from Standard Radio Corp. (SR), Tokyo
Here you find 239 models, 223 with images and 84 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
