SR-G404 599H01

SR-G404 599H01; Standard Radio Corp. (ID = 1584312) Radio SR-G404 599H01; Standard Radio Corp. (ID = 1584308) Radio
SR-G404 599H01; Standard Radio Corp. (ID = 1584309) Radio SR-G404 599H01; Standard Radio Corp. (ID = 1584310) Radio
SR-G404 599H01; Standard Radio Corp. (ID = 1584311) Radio SR-G404 599H01; Standard Radio Corp. (ID = 1584313) Radio
Use red slider bar for more.
SR-G404 599H01; Standard Radio Corp. (ID = 1584312) Radio
Standard Radio Corp.: SR-G404 599H01 [Radio] ID = 1584312 391x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model SR-G404 599H01, Standard Radio Corp. (SR), Tokyo

Country:  Japan
Manufacturer / Brand:  Standard Radio Corp. (SR), Tokyo
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 5 cm = 2 inch
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: SR-G404 599H01 - Standard Radio Corp. SR, Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 65 x 100 x 35 mm / 2.6 x 3.9 x 1.4 inch
Notes

Mit Ohrhörer.

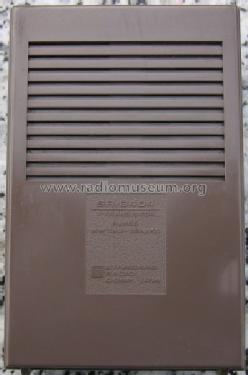

SR-G404 brown.

Net weight (2.2 lb = 1 kg) 0.120 kg / 0 lb 4.2 oz (0.264 lb)

Model page created by Gerhard Härtl. See "Data change" for further contributors.
