SR-RQ520FL

SR-RQ520FL; Standard Radio Corp. (ID = 1471405) Radio SR-RQ520FL; Standard Radio Corp. (ID = 1471406) Radio
SR-RQ520FL; Standard Radio Corp. (ID = 1471407) Radio
Use red slider bar for more.

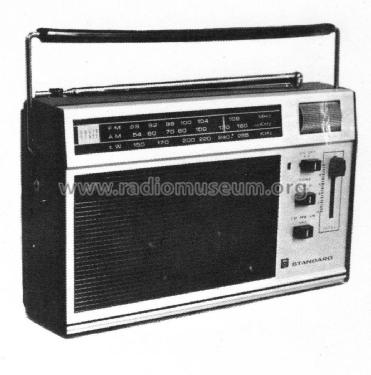

SR-RQ520FL; Standard Radio Corp. (ID = 1471405) Radio
Standard Radio Corp.: SR-RQ520FL [Radio] ID = 1471405 700x610
Select picture or schematic to display from thumbnails on the right and click for download.
For model SR-RQ520FL, Standard Radio Corp. (SR), Tokyo

Country:  Japan
Manufacturer / Brand:  Standard Radio Corp. (SR), Tokyo
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 3 x 1,5/ ? Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 8 cm = 3.1 inch
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: SR-RQ520FL - Standard Radio Corp. SR, Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 200 x 130 x 60 mm / 7.9 x 5.1 x 2.4 inch
Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)

Model page created by Gerhard Härtl. See "Data change" for further contributors.
