• Country
• Japan

• Manufacturer / Brand
• Standard Radio Corp. (SR), Tokyo

• Year
• 1963 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 154970

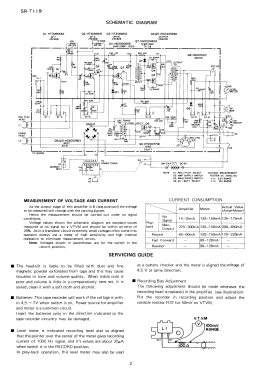

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 1.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

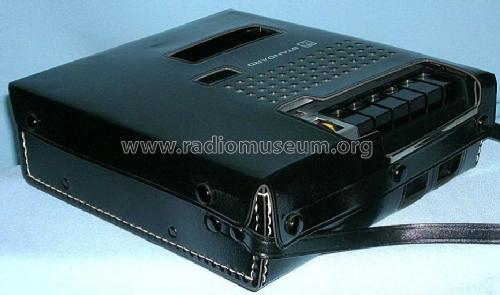

• Model: SR-T119 - Standard Radio Corp. SR, Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 135 x 67 x 218 mm / 5.3 x 2.6 x 8.6 inch

• Notes
• Zählwerk, Tonregler, Level-Instrument, Buchse für ext. Speaker, 5-pol-Din Buchse für Rec / Play, Mikrofonbuchse schaltbar

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
