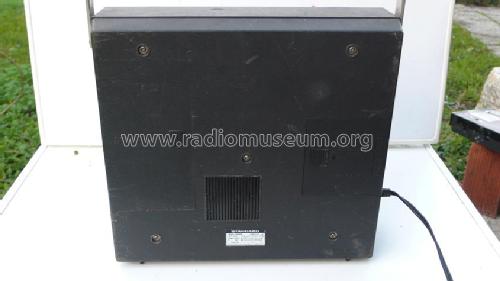

Tape Recorder SR 501
Standard Radio Corp. (SR), Tokyo
- Country
- Japan
- Manufacturer / Brand
- Standard Radio Corp. (SR), Tokyo
- Year
- 1965 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 246346
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Line / Batteries (any type) / 220/ 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Power out
- 0.9 W (1 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Tape Recorder SR 501 - Standard Radio Corp. SR, Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 270 x 250 x 100 mm / 10.6 x 9.8 x 3.9 inch
- Notes
-
Speed 4.75 ips; 2-track mono; max. reel dia= 5".
- Net weight (2.2 lb = 1 kg)
- 3.4 kg / 7 lb 7.8 oz (7.489 lb)
- Price in first year of sale
- 1,500.00 pte
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
