• Country
• Japan

• Manufacturer / Brand
• Standard Radio Corp. (SR), Tokyo

• Year
• 1965–1972 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 92057

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Dry Batteries / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

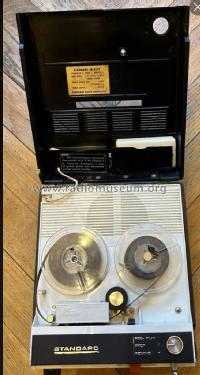

• Model: Tiny Pal SR-F21T - Standard Radio Corp. SR, Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 155 x 73 x 180 mm / 6.1 x 2.9 x 7.1 inch

• Notes

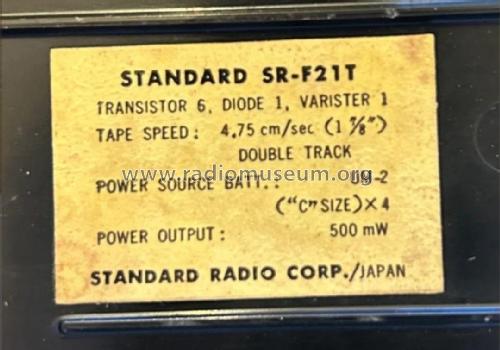

• max. reel diameter 6 cm, two tracks (Mono), speed 4,75cm/sec.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Marc Gianella. See "Data change" for further contributors.
