Tune Flash Wave-Master SR-H115L; Standard Radio Corp. (ID = 311131) Radio
Standard Radio Corp.: Tune Flash Wave-Master SR-H115L [Radio] ID = 311131 780x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tune Flash Wave-Master SR-H115L, Standard Radio Corp. (SR), Tokyo:

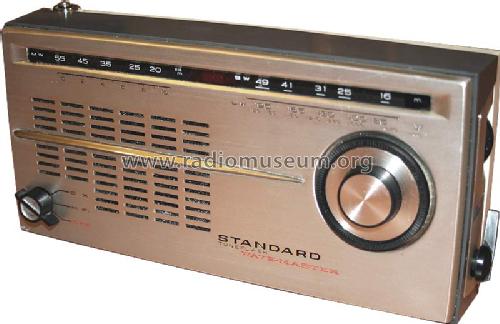

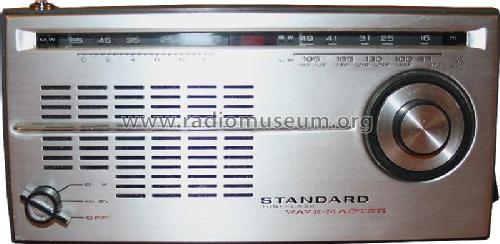

My 1961 MW/LW/SW Standard Tuneflash Wave-master 8 transistor radio. When switched on to the 'Hi Fi' option, a little red light comes in the middle of the twin tuning scales and then goes out when a radio station is correctly tuned. When the 'DX' option is selected, sensitivity is optimized and the set is capable of picking up distant stations .

Country:  Japan
Manufacturer / Brand:  Standard Radio Corp. (SR), Tokyo
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Tune Flash Wave-Master SR-H115L - Standard Radio Corp. SR, Tokyo
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 210 x 102 x 45 mm / 8.3 x 4 x 1.8 inch
Notes Similar to model SR-H115 but has LW. When "Hi-Fi" option selected, the "Magic Lamp" indicator goes out when tuned correctly to a radio station. When the "DX" option is selected, sensitivity is optimized.
Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)
Price in first year of sale 2'480.00 BFr
Source of data - - Data from my own collection

Model page created by Howard Craven. See "Data change" for further contributors.
