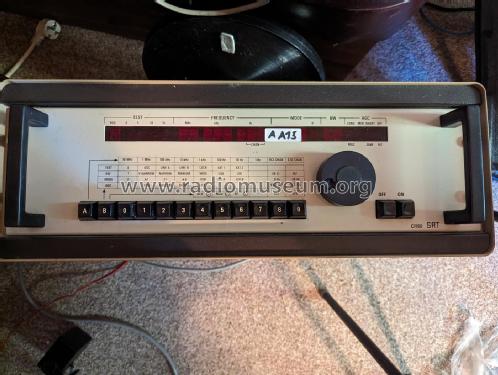

CR 90

Country:  Sweden
Manufacturer / Brand:  Standard Radio & Telefon AB (SRT), Stockholm
Year: 1985 ?? Category: Commercial Receiver (may include amateur bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion; ZF/IF 125200 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 220 / 110 / 21-32 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: CR 90 - Standard Radio & Telefon AB
Material Metal case
Shape Rack
Dimensions (WHD) 482 x 133 x 320 mm / 19 x 5.2 x 12.6 inch
Notes Commercial communications receiver covering 10 kHz - 30 MHz, AM, USB/LSB, CW (A1, A2, A2H, A3, A3H, A3A, A3J, A3B, F1).
Double conversion, 1.IF 125,2 MHz, 2.IF 200 kHz, digital frequency display, 1 Hz steps.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Source of data -- Original prospect or advert

Model page created by Martin Bösch. See "Data change" for further contributors.
