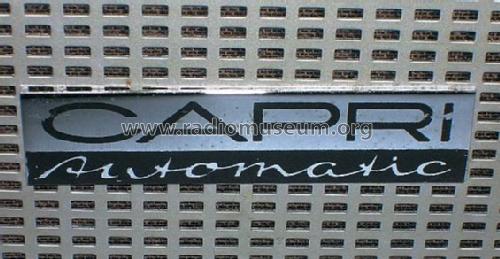

Capri 67 R14

Capri 67 R14; Imperial Rundfunk (ID = 62009) Radio

Capri 67 R14; Imperial Rundfunk (ID = 62010) Radio

Capri 67 R14; Imperial Rundfunk (ID = 62011) Radio

Capri 67 R14; Imperial Rundfunk (ID = 62013) Radio

Capri 67 R14; Imperial Rundfunk (ID = 611684) Radio

Capri 67 R14; Imperial Rundfunk (ID = 611678) Radio

Capri 67 R14; Imperial Rundfunk (ID = 2073612) Radio

Capri 67 R14; Imperial Rundfunk (ID = 611685) Radio
Capri 67 R14; Imperial Rundfunk (ID = 2326148) Radio Capri 67 R14; Imperial Rundfunk (ID = 2326149) Radio
Capri 67 R14; Imperial Rundfunk (ID = 2326151) Radio Capri 67 R14; Imperial Rundfunk (ID = 2326150) Radio
Capri 67 R14; Imperial Rundfunk (ID = 214893) Radio Capri 67 R14; Imperial Rundfunk (ID = 214894) Radio
Capri 67 R14; Imperial Rundfunk (ID = 214896) Radio Capri 67 R14; Imperial Rundfunk (ID = 214897) Radio
Capri 67 R14; Imperial Rundfunk (ID = 214898) Radio Capri 67 R14; Imperial Rundfunk (ID = 214899) Radio
Use red slider bar for more.
Capri 67 R14; Imperial Rundfunk (ID = 2326148) Radio
Imperial Rundfunk: Capri 67 R14 [Radio] ID = 2326148 1024x963

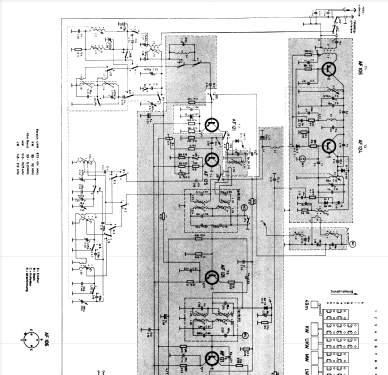

Select picture or schematic to display from thumbnails on the right and click for download.
For model Capri 67 R14, Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

Country:  Germany
Manufacturer / Brand:  Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen
Year: 1966–1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF106 AF121 AF121 AF121 AF124 AF125 AC151 AC151 AC153 AC153
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Dry Batteries / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.8 W (unknown quality)
from Radiomuseum.org Model: Capri 67 R14 - Imperial Rundfunk und Fernseh
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 190 x 90 mm / 11.4 x 7.5 x 3.5 inch
Notes Netzbetrieb mit zusätzlichem Netzteil möglich.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Source of data Handbuch VDRG 1966/1967 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch VDRG 1967/1968


All listed radios etc. from Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen
Here you find 440 models, 412 with images and 219 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
