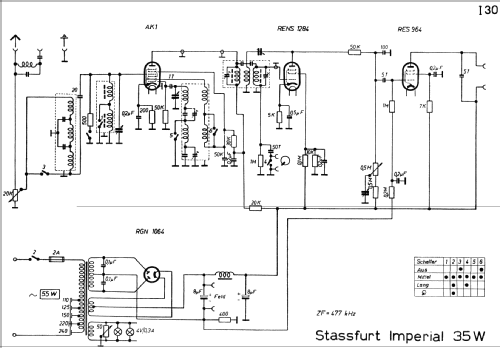

Imperial 35W; Stassfurter Licht- (ID = 221473) Radio

Imperial 35W; Stassfurter Licht- (ID = 2446362) Radio
Imperial 35W; Stassfurter Licht- (ID = 1105037) Radio Imperial 35W; Stassfurter Licht- (ID = 148607) Radio
Imperial 35W; Stassfurter Licht- (ID = 1105038) Radio Imperial 35W; Stassfurter Licht- (ID = 1105039) Radio
Use red slider bar for more.

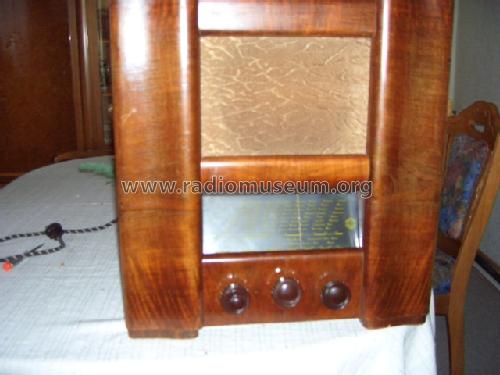

Imperial 35W; Stassfurter Licht- (ID = 1105037) Radio
Stassfurter Licht-: Imperial 35W [Radio] ID = 1105037 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperial 35W, Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter):
Bildeigentum: Andreas Peukert Imperial 35 W

Country:  Germany
Manufacturer / Brand:  Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AK1 RENS1284 RES964 RGN1064
Main principle Superheterodyne (common); ZF/IF 477 kHz; Super, reaction, but not adjustable
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Imperial 35W - Stassfurter Licht- und
Price in first year of sale 258.00 RM
Source of data Der Radio-Händler / Radio-Fernseh-Händler (ab Aug. 1951, H.15) / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Literature/Schematics (1) Radio Schakelingen (J.G.R. van Dijck)
