Imperial 55M
Use red slider bar for more.
Stassfurter Licht-: Imperial 55M [Radio] ID = 1013 574x525
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1934–1936 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: RENS1294 AK1 RENS1294 REN924 RES964 RGN1064 |
|---|
| Main principle | Superhet with RF-stage; ZF/IF 124 kHz |
|---|---|
| Tuned circuits | 8 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-240 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: Imperial 55M - Stassfurter Licht- und |
| Material | Wooden case |
| Shape | Tablemodel, high profile (upright - NOT Cathedral nor decorative). |
| Dimensions (WHD) | 470 x 510 x 350 mm / 18.5 x 20.1 x 13.8 inch |
| Notes | Feldstärke-Anzeigeinstrument. |
| Price in first year of sale | 420.00 RM |

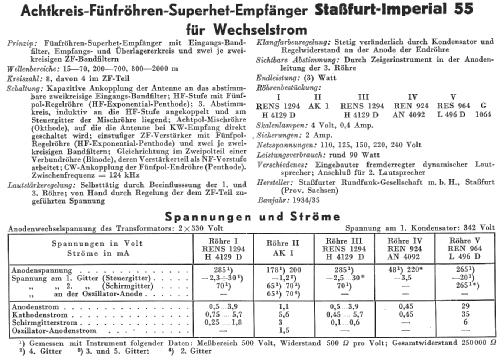

| Source of data | Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb |

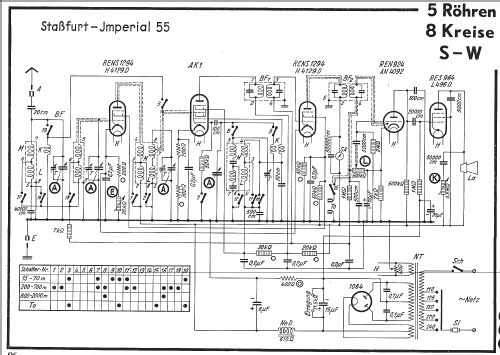

| Circuit diagram reference | Röhren in FS-Bestückungstabellen |
| Mentioned in | Stassfurter Imperial. Eine Chronik in Wort und Bild |
| Picture reference | Das Modell ist im «Radiokatalog» (Erb) abgebildet. |
