• Year
  • 1934/1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 5060

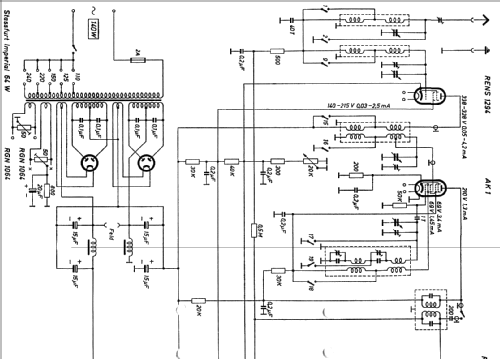

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 124 kHz
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Makrophon 64W - Stassfurter Licht- und
  • Shape
  • Console with any shape - in general
  • Notes
  • = 64W-Musikschrank mit Makrophon-Verstärker.
  • Price in first year of sale
  • 795.00 RM
  • Source of data
  • Radiokatalog Band 1, Ernst Erb
  • Circuit diagram reference
  • Röhren in FS-Bestückungstabellen
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
