Miami ; Imperial Rundfunk (ID = 360382) Radio
Imperial Rundfunk: Miami [Radio] ID = 360382 908x604
Select picture or schematic to display from thumbnails on the right and click for download.
For model Miami, Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

Country:  Germany
Manufacturer / Brand:  Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

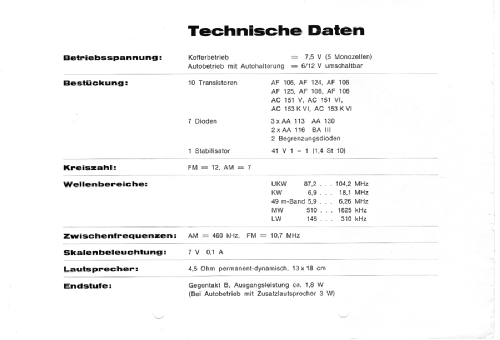

Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF106 AF106 AF106 AF106 AF124 AF125 AC151 AC151 AC153 AC153
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)

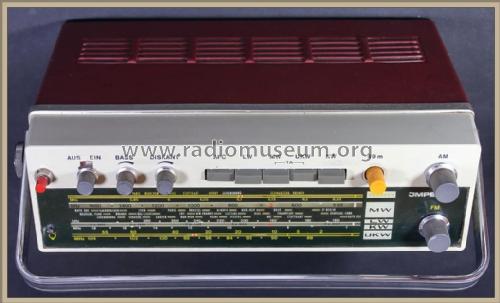

Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details

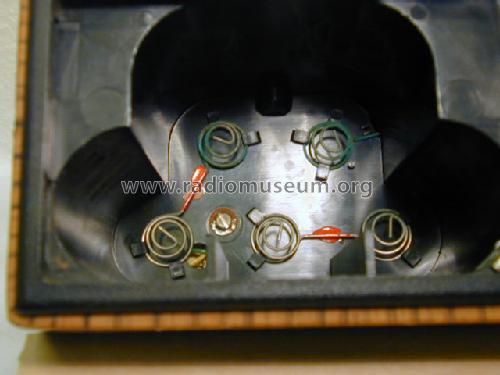

Power type and voltage Storage and/or dry batteries / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.8 W (unknown quality)
from Radiomuseum.org Model: Miami - Imperial Rundfunk und Fernseh
Material Modern plastics (no Bakelite or Catalin)

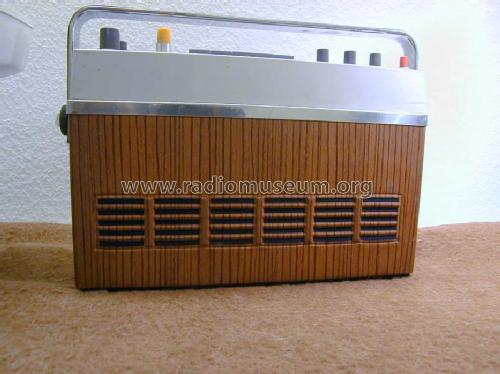

Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 190 x 90 mm / 11.4 x 7.5 x 3.5 inch
Notes

Netzbetrieb mit zusätzlichem Netzteil möglich. Im Boden Kontakte für optionale
Autohalterung.
Siehe auch: Kuba Florida.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 398.00 DM
Source of data Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb
