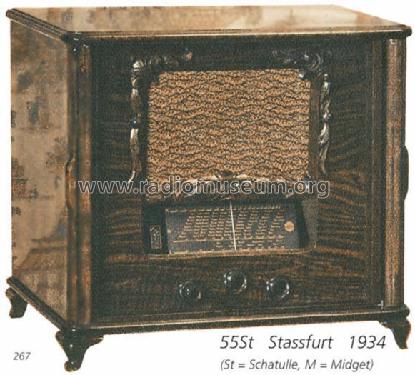

Stassfurter Licht-: 55St [Radio] ID = 1014 582x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model 55St Schatulle, Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Country:  Germany
Manufacturer / Brand:  Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Year: 1935–1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: RENS1294 AK1 RENS1294 REN924 RES964 RGN1064
Main principle Superhet with RF-stage; ZF/IF 124 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Model: 55St [Schatulle] - Stassfurter Licht- und
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 580 x 505 x 410 mm / 22.8 x 19.9 x 16.1 inch
Notes Feldstärke-Anzeigeinstrument.
Net weight (2.2 lb = 1 kg) 25 kg / 55 lb 1.1 oz (55.066 lb)
Price in first year of sale 480.00 RM
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb

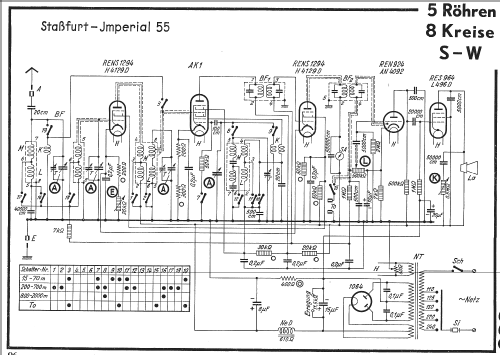

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Stassfurter Imperial. Eine Chronik in Wort und Bild
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
