• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• State (Brand) Wright, Stevenson & Co. Ltd.; Dunedin

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 362520

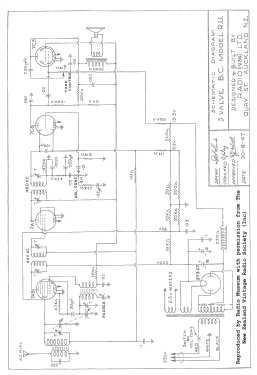

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 7A8 7A7 7C6 7C5 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5.5 inch = 14 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: State RU - State Brand Wright, Stevenson

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 410 x 290 x 200 mm / 16.1 x 11.4 x 7.9 inch

• Notes

• State RU

  5-valve broadcast (MW) mantel radio. The moulded bakelite cabinet was the largest made in New Zealand at the time.

  See also Ultimate RU.

  Manufactured by Radio (1936) Ltd.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
