• Country
• Australia

• Manufacturer / Brand
• Standard Telephones and Cables Pty, Ltd (STC), Sydney

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 167764

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 6B7 42 80S

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 200; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

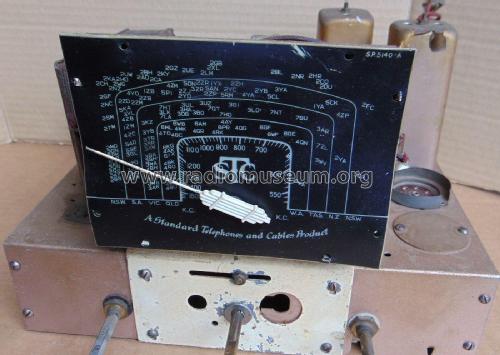

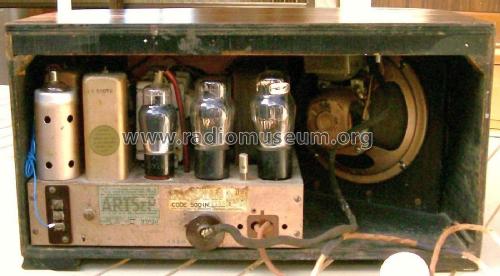

• Model: 500A Ch= 500 - Standard Telephones and Cables

• Shape
• Tablemodel, low profile (big size).

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. I I

• Literature/Schematics (1)
• Silicon Chip November 2014, Page 92

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
