Capehart Royal A8471CH Period Style

Standard Telephones and Cables Pty, Ltd (STC), Sydney

  • Year
  • 1957–1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 269098

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 4 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 230-250 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Capehart Royal A8471CH [Period Style] - Standard Telephones and Cables
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • STC Capehart Royal

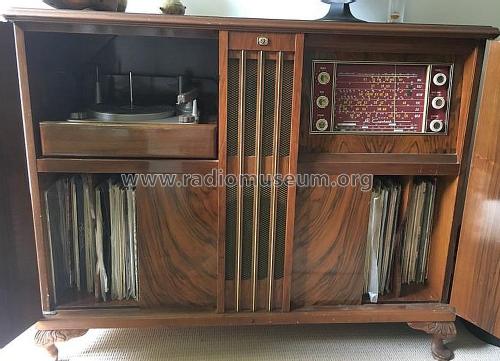

    The magnificent STC Capehart Royal radiograms are designed for the vivid recreation of living music to suit the discriminating listener and connoisseur of recorded music.

    Balanced reproduction of sound through the full audible range comes from the STC "equisonic" sound chamber. Band-spreading covers the whole short wave range.

    The 4-speed mixer-changer fitted with special Hi-Fi pick-up plays all types and sizes of records.

    The Capehart Royal is available in a period style cabinet of selected walnut, mahogany, birdseye maple or camphor laurel or housed in a contemporary style cabinet of rich natural maple. (MINGAY'S PRICE SERVICE)

    See also later version.

  • Price in first year of sale
  • 236.25 AUS £
  • Literature/Schematics (1)
  • - - Manufacturers Literature (STC Radio Service Bulletin Issue No. 126, April 1957.)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
