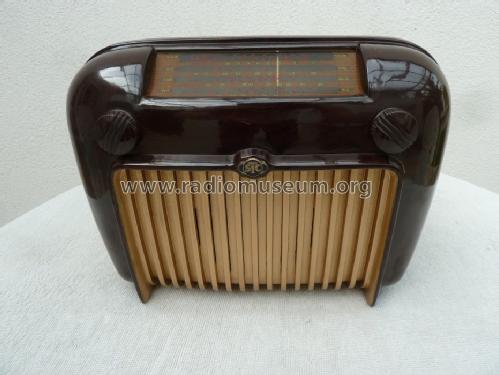

Bantam B114C (B114)
Standard Telephones and Cables Pty, Ltd (STC), Sydney
- Country
- Australia
- Manufacturer / Brand
- Standard Telephones and Cables Pty, Ltd (STC), Sydney
- Year
- 1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 191201
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 200; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Bantam B114C - Standard Telephones and Cables
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
Available in various colours.
- Price in first year of sale
- 19.95 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. IX
- Literature/Schematics (1)
- - - Manufacturers Literature (STC Radio Service Bulletin No. 66, August 1950.)
- Literature/Schematics (2)
- Australian Official Radio Service Manual AORSM (Volume 9, 1951, Page 285.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
