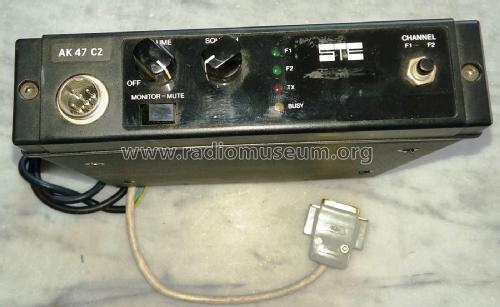

AK 47 C2

STE s.r.l.; Milano

Data
Forum
Pictures
Collections

  • Year
  • 1994 ??
  • Category
  • Commercial Transmitter & Receiver (TRX not Amateur)
  • Radiomuseum.org ID
  • 303306

 Technical Specifications

  • Number of Transistors
  • 22
  • Main principle
  • Transceiver
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: AK 47 C2 - STE s.r.l.; Milano
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 180 x 50 x 210 mm / 7.1 x 2 x 8.3 inch
  • Notes

  • Ricetrasmettitore veicolare per usi commerciali, in Italia soggetti a concessione del Ministero delle Poste e Telecomunicazioni.

    Funzionamento simplex machine to machine o duplex 2 frequenze via ripetitore.

    Campo di frequenza 450 - 470 MHz.

    Dotato di chiamata selettiva con codice CCIR a 5 toni.

    Dotato di tono subaudio selezionabile da 67,0 a 250,3 Hz per agganciare solo il ripetitore associato all'impianto in concessione.



  • Net weight (2.2 lb = 1 kg)
  • 1.5 kg / 3 lb 4.9 oz (3.304 lb)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
