Ellipsoid Ribbon

Ellipsoid ; Steane’s Sound (ID = 2334941) Microphone/PU Ellipsoid ; Steane’s Sound (ID = 2334942) Microphone/PU
Ellipsoid ; Steane’s Sound (ID = 2334943) Microphone/PU Ellipsoid ; Steane’s Sound (ID = 2338444) Microphone/PU

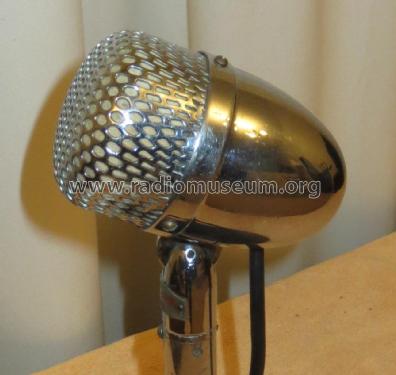

Ellipsoid ; Steane’s Sound (ID = 2402127) Microphone/PU
Use red slider bar for more.

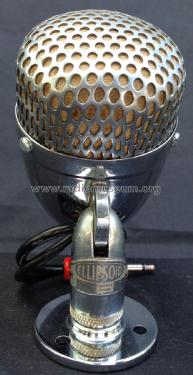

Ellipsoid ; Steane’s Sound (ID = 2334941) Microphone/PU
Steane’s Sound: Ellipsoid [Microphone/PU] ID = 2334941 1082x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ellipsoid Ribbon, Steane’s Sound Systems Pty. Ltd.; Melbourne, VIC

Country:  Australia
Manufacturer / Brand:  Steane’s Sound Systems Pty. Ltd.; Melbourne, VIC
Year: 1948 Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Ellipsoid [Ribbon] - Steane’s Sound Systems Pty.
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 60 x 120 x 90 mm / 2.4 x 4.7 x 3.5 inch
Notes

Advertised in 1949 as the world's smallest ribbon mike.

Net weight (2.2 lb = 1 kg) 0.468 kg / 1 lb 0.5 oz (1.031 lb)
Mentioned in -- Original prospect or advert (Radio & Hobbies Jan 1949, Page 62.)

Model page created by Keith Ellison. See "Data change" for further contributors.
