• Year
  • 1954 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 160366

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • none
  • Wave bands
  • - without
  • Details
  • Power: B-Battery Eliminator
  • Power type and voltage
  • Alternating Current supply (AC) / 220V Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

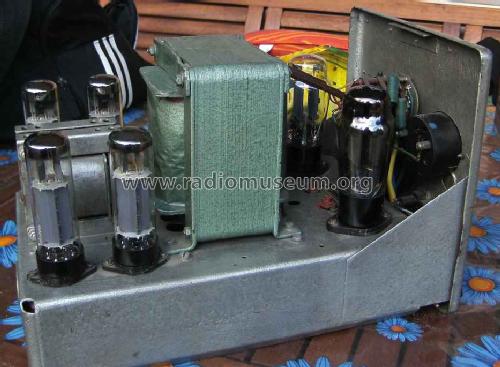

  • Model: Hochkonstant- Netzgerät HK430 - Steinlein, Peter; Düsseldorf,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 330 x 200 x 220 mm / 13 x 7.9 x 8.7 inch
  • Notes
  • Das Gerät hat 4 feste Spannungen(150V; 220V; 290V; 360V), die mit +5V oder -5V feingeregelt werden können. Der max. entnehmbare Strom beträgt 300mA.
  • Net weight (2.2 lb = 1 kg)
  • 15 kg / 33 lb 0.6 oz (33.04 lb)
  • Author
  • Model page created by Tobias Münzing. See "Data change" for further contributors.
